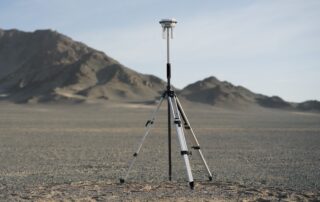

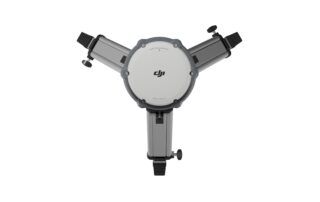

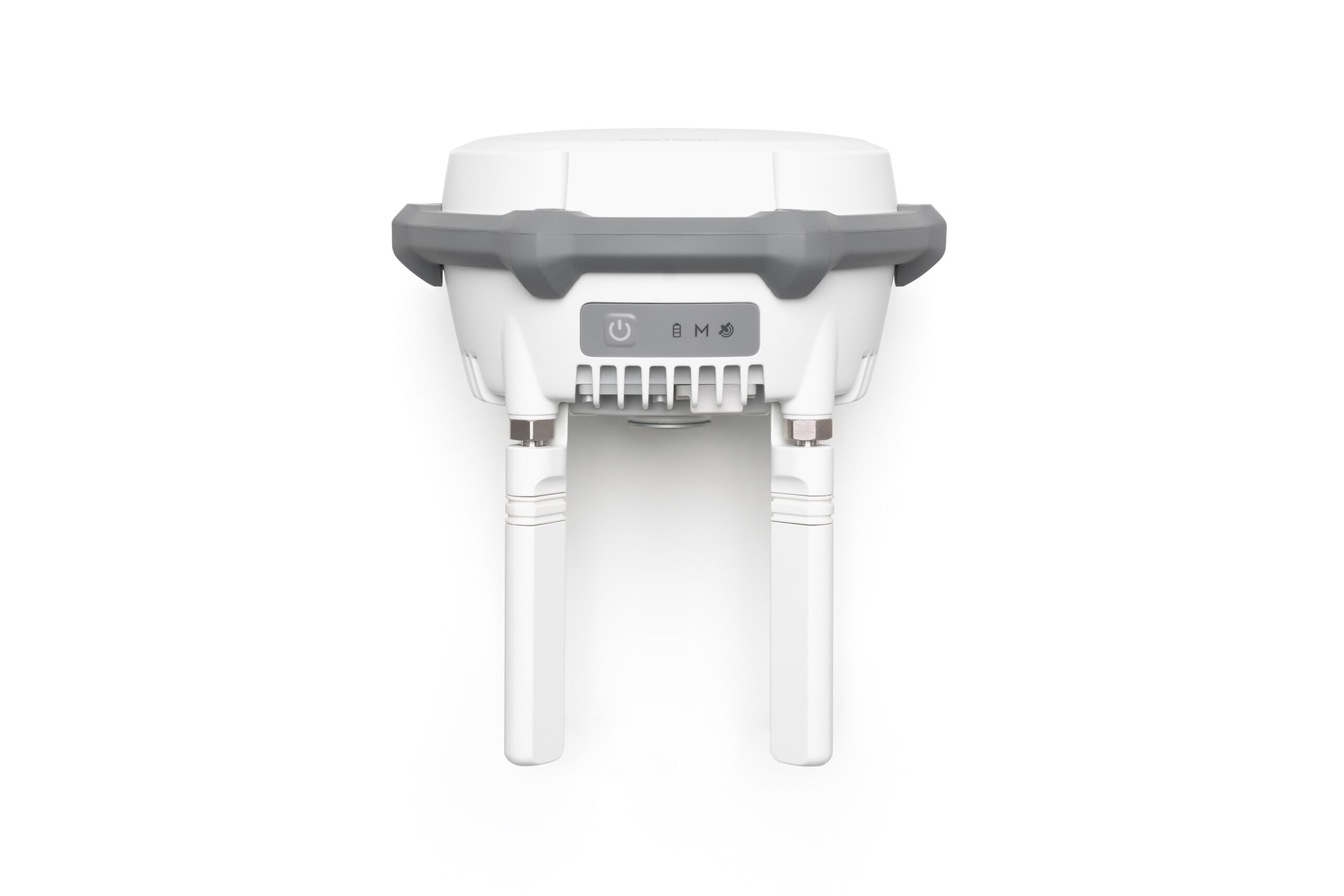

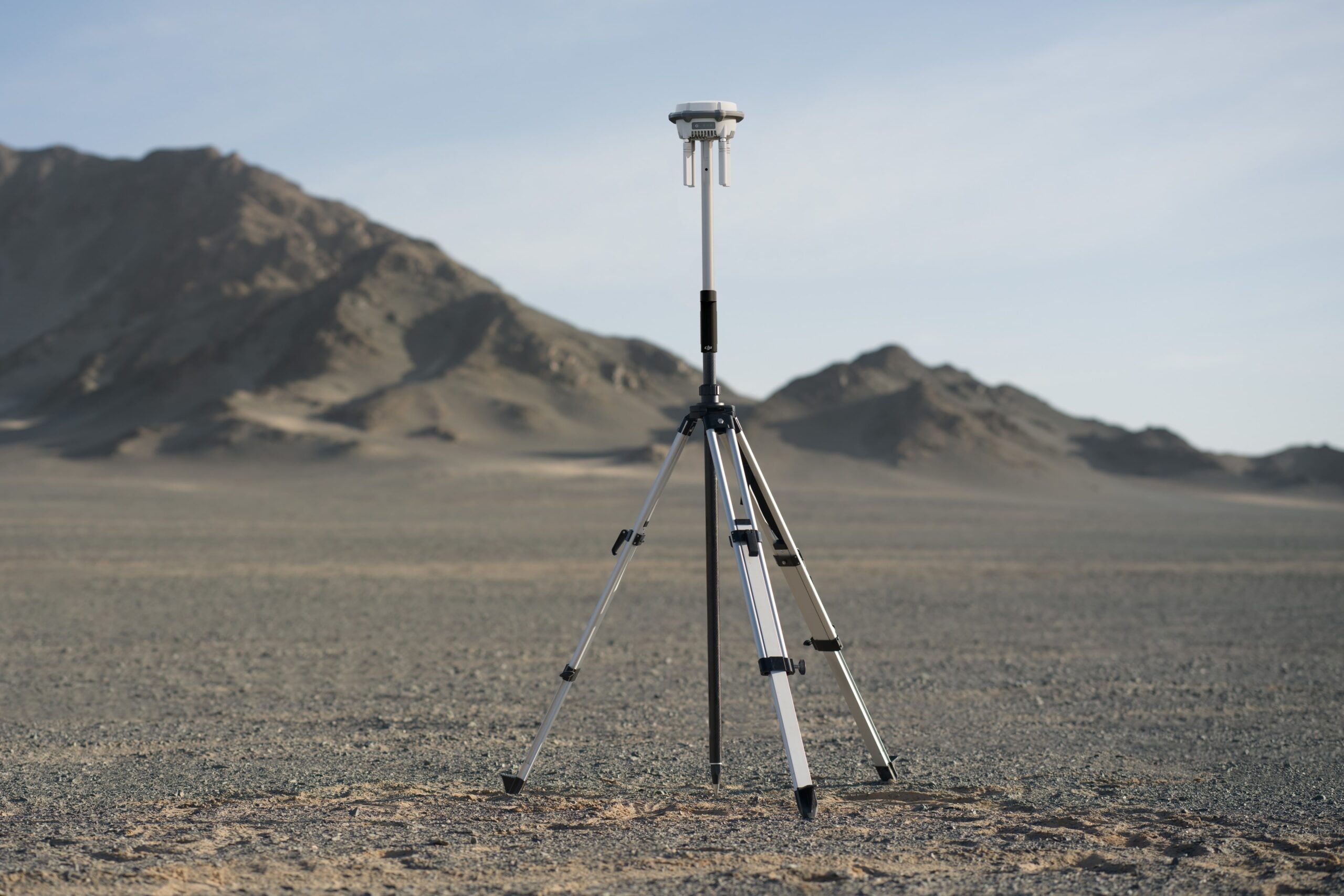

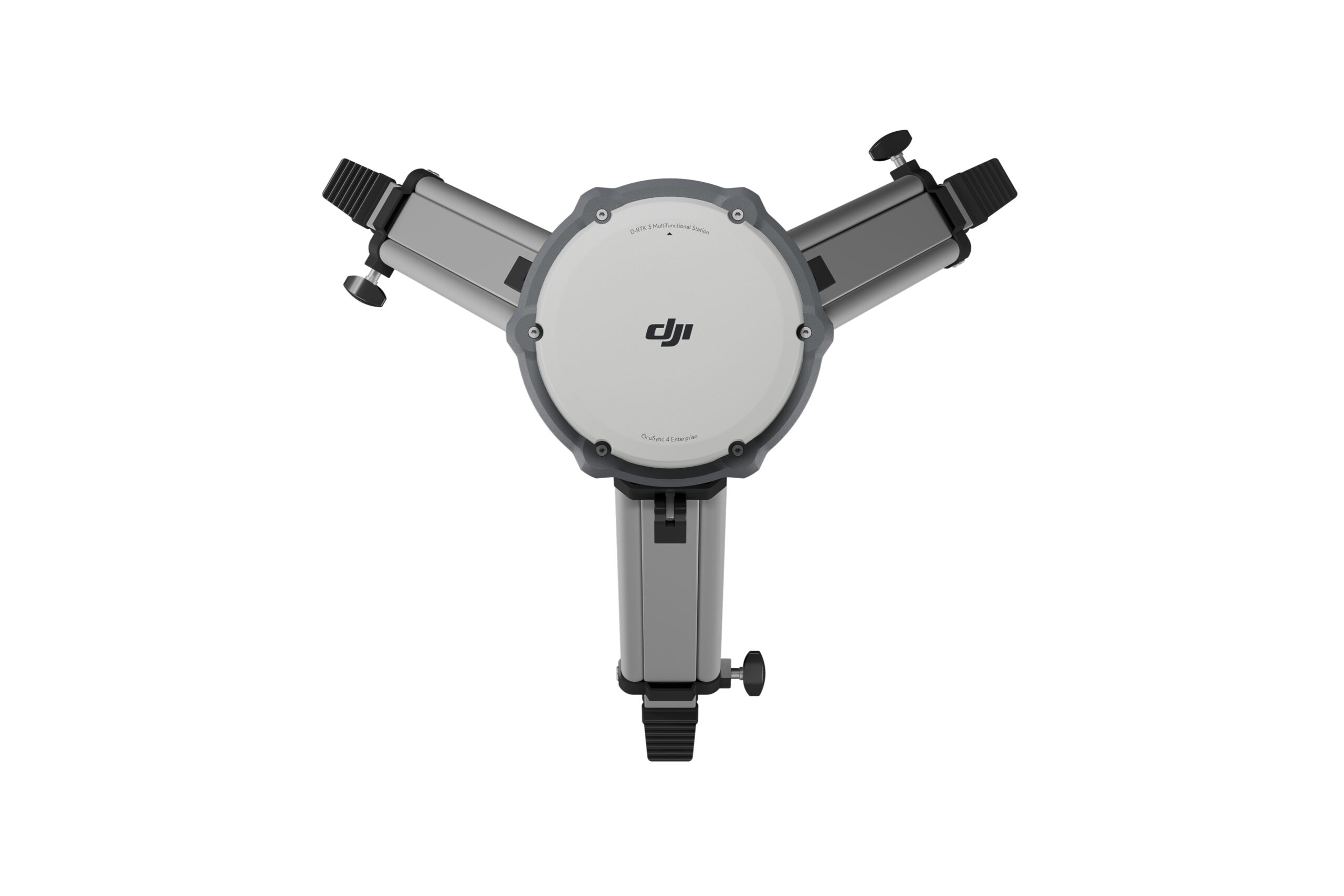

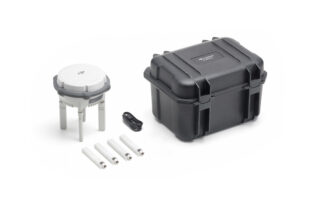

D-RTK 3

The D-RTK 3 Multifunctional Station supports major satellite systems, enabling precise positioning and extended drone operations. It functions as a base or relay station and enhances aerial surveying with DJI Enterprise and DJI Terra.

The new D-RTK 3 Multifunctional Station features high-performance antennas and receivers that support major global satellite navigation systems and multiple data transmission links. It can function as a base station for centimeter-level positioning of multiple drones or as a relay station to extend operational range for drones and DJI Dock 3. Additionally, its new rover station mode, integrated with the DJI Enterprise app and DJI Terra, enhances high-precision aerial surveying with secure and accurate operation.

  • Mounting Options: UAV/Vehicle/Backpack
  • GNSS: GPS/BDS/Galileo/GLONASS/QZSS
  • RTK Accuracy: Horizontal (0.8 cm RMS +1 ppm | Vertical (1.5 cm RMS + 1 ppm
  • Dimensions: 163 x 344 mm
  • Weight: 4.94lbs
  • Operating Temp: -4º to 131º F
  • Weather Rating: IP67

D-RTK 3

Multifunctional Station

High-Precision Positioning and Relay System

The new D-RTK 3 Multifunctional Station integrates high-performance antennas and receiver modules capable of tracking and resolving data from major global satellite navigation systems, and it supports multiple data transmission links. With these outstanding features, it can serve as a base station to provide centimeter-level positioning for multiple drones simultaneously or extend the operational range of drones and DJI Dock 3 in relay station mode. Additionally, the new rover station mode, combined with the DJI Enterprise app and DJI Terra, provides a comprehensive solution for high-precision aerial surveying applications, ensuring a secure and accurate operation.

Relay Station Mode:

Break Through Limitations

In urban areas, valleys, or challenging DJI Dock 3 sites with dense obstacles, simply switch the D-RTK 3 to Relay Station Mode and position it at a high point, or directly set up the D-RTK 3 Relay Fixed Deployment Version. This setup enhances the video transmission range for the Matrice 4/4D series, extending operational coverage up to 25 kilometers.

Rover Station Mode: Flexible and Efficient

Besides serving as a base station, D-RTK 3 can also be used as a rover station to collect control point coordinates, enhancing the accuracy of UAV aerial survey and improving survey precision.

Adaptable to Various Environments

The Fixed Deployment Version offers outdoor maintenance-free operation and adaptability to various environments. It can be installed on towers, utility poles, parapet walls, and other vertical structures, meeting diverse scenario requirements. Additionally, it supports power supply from DJI Dock 3 or third-party external PoE sources, enabling long-distance deployments.
