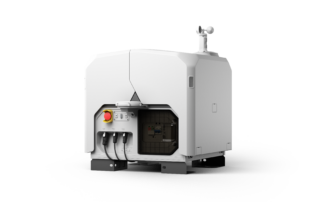

Dock 3
DJI Dock 3 revolutionizes automated drone operations with its IP56-rated durability, 12 m/s wind resistance, and a wide operating range from -30° to 50°C for all-season deployment. Its advanced takeoff system enables a rapid 10-second launch, while improved charging and enhanced RTK enhance performance. Designed for industries like public safety, infrastructure, and surveying, it boosts efficiency and reliability in demanding environments.
With Matrice 4D or 4TD drones, DJI Dock 3 enables 24/7 remote operations and supports mobile vehicle-mounted deployment for versatile use. These drones share cameras with the Matrice 4 Series but offer enhanced flight and protection performance, along with compatibility with DJI RC Plus 2 Enterprise. Integrated with DJI FlightHub 2, the system boosts efficiency by reducing operational time and labor costs.
- 54-Min Max Flight Time
- IP55 Rating
- BVLOS Operation
- 27 Min Charging Time
- 6-Directional Sensing & Positioning
- -22º to 122º F – Operating Temperature
- Aircraft Dimensions
335 x 398 x 153 mm - Dock Dimensions
640 x 745 x 770 mm - Dock Weight:
Approx. 55 kg
Product Highlights
High Performance Drones
IP55 Ingress Protection
10km Max Effective Operating Radius
Integrated Environmental Monitoring Sytem
Cloud-Based Modeling
FlyTo Tasks
Private Deployment
Third-Party Payload Support
Flexible Deployment,
Ultra-Long Transmission
Master of All Environments
DJI Dock 3 is designed to withstand extreme temperatures, operating and charging efficiently in heat up to 50°C (122°F). It ensures reliable performance in freezing conditions, functioning even when temperatures drop below -20°C (-4°F). With preheating, it can operate stably in harsh environments as cold as -30°C (-22°F).
Mobile Vehicle-Mounted Deployment
DJI Dock 3 is the first DJI Dock designed for mobile vehicle-mounted deployment. It has been optimized with vibration-tested components, horizontal calibration, and cloud-based location calibration. For emergency operations or long-distance inspections, the DJI Dock 3 Vehicle-Mounted Gimbal Mount enables flexible deployment in temporary scenarios.
High-Performance Aircraft Models
The water- and dust-resistant DJI Matrice 4D and 4TD are designed for DJI Dock 3, offering extended flight time and compatibility with DJI RC Plus 2 Enterprise. Both drones feature a wide-angle camera, medium tele camera, tele camera, and a Laser Range Finder. The Matrice 4D excels in high-precision mapping and inspections, while the Matrice 4TD, with its infrared thermal camera and NIR auxiliary light, is ideal for infrastructure inspections, emergency response, and public safety.
Matrice 4D
Wide-Angle Camera
-
-
- 4/3 CMOS
- 20MP Effective Pixels
- f2.8-f/11
- 24mm Format Equivalent
- Mechanical Shutter
-
Medium Tele Camera
-
-
- 1/1.3-inch CMOS
- 48MP Effective Pixels
- f/2.8
- 70mm Format Equivalent
-
Tele Camera
-
-
- 1/1.5-inch CMOS
- 48MP Effective Pixels
- f/2.8
- 168mm Format Equivalent
-
Laser Range Finder
-
-
- Measurement Range: 1800 m (1 Hz);
- Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)
- Blind Zone: 1m
- Range Accuracy (m)±(0.2 + 0.0015 x D)
-
Matrice 4TD
Wide-Angle Camera
-
-
- 1/1.3 CMOS
- 48MP Effective Pixels
- f1.7
- 24mm Format Equivalent
-
Medium Tele Camera
-
-
- 1/1.3-inch CMOS
- 48MP Effective Pixels
- f/2.8
- 70mm Format Equivalent
-
Tele Camera
-
-
- 1/1.5-inch CMOS
- 48MP Effective Pixels
- f/2.8
- 168mm Format Equivalent
-
Laser Range Finder
-
-
- Measurement Range: 1800 m (1 Hz);
- Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)
- Blind Zone: 1m
- Range Accuracy (m)±(0.2 + 0.0015 x D)
-
NIR Auxiliary Light
-
-
- 6º FOV, 100m Illumination Distance
-
Infrared Thermal Camera
-
-
- 640×512 Resolution
- f/1.0
- 53mm Format Equivalent
- Uncooled VOx Microbolometer
- Supports UHR Infrared Image mode
-
